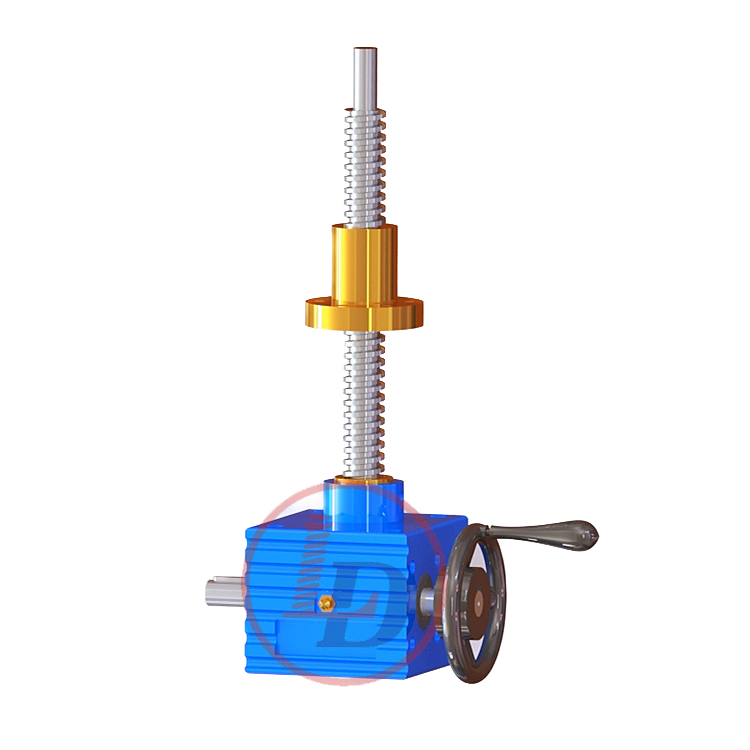

manual lifters with worm in small screw jack with travelling nut

Advanced design, compact aluminum gearbox, low price and low working system.

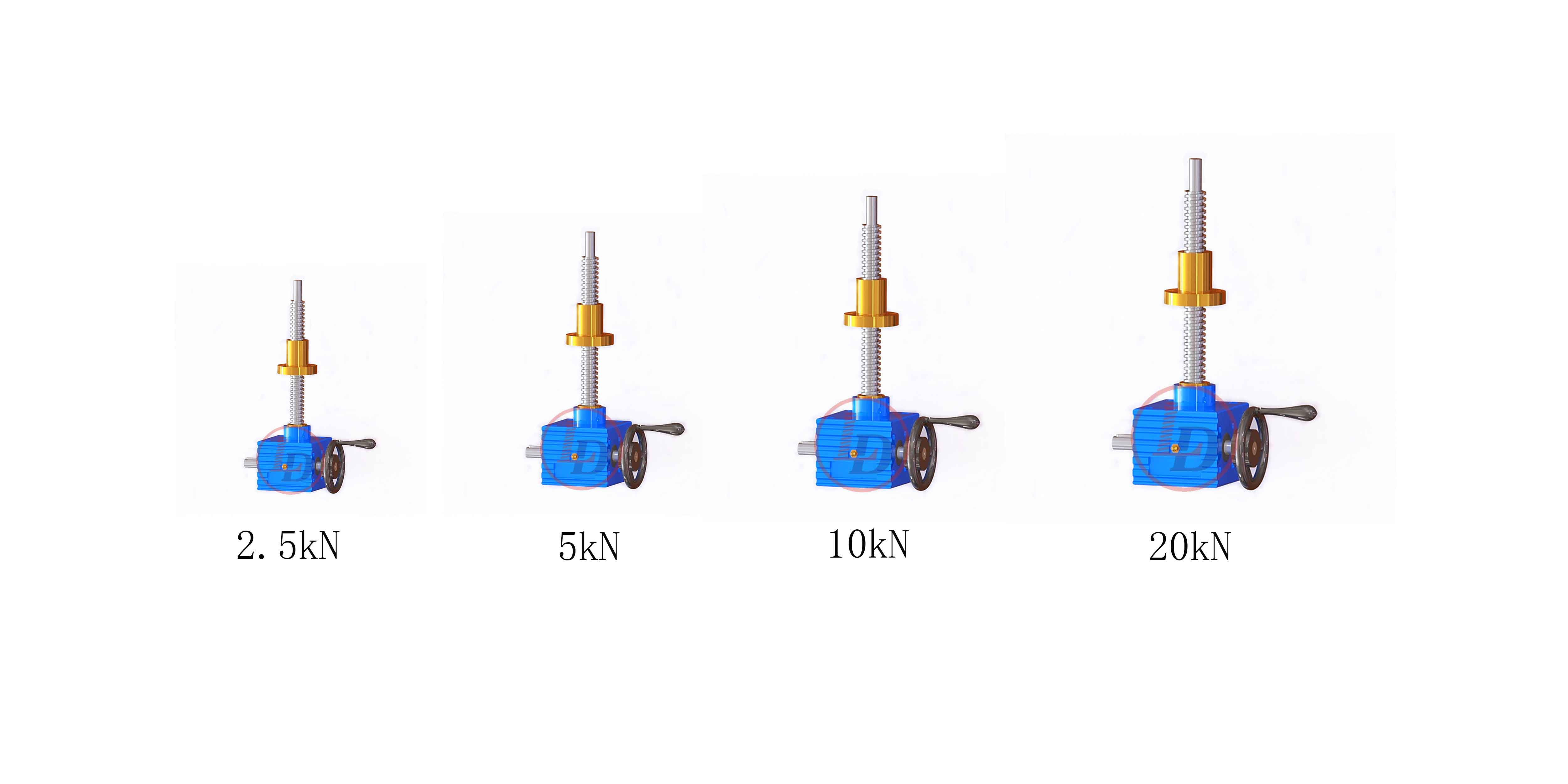

Load range: 0.5ton-20ton

The linear speed of the putter can reach 30mm/s

Maximum input speed is 1500RPM

Various input forms

The 10-minute work system is 20% and the working environment temperature is -10 degrees Celsius-70 degrees Celsius

  • Brand:

    Lude
  • Payment:

    TT
  • Market price:

    $120
  • Product origin:

    ShanDong of China
  • Color:

    customize
  • Shipping port:

    Tianjin or Qingdao
  • Lead Time:

    25/35
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Cubic housing jack has the small size, compact and robust structure and mounting versatility
Minimisation of the necessary components and maximisation of the effectiveness of these components
Relatively large lifting and moving forces can be realised in the smallest of spaces
The spindle is guided through the housing

The cubic housing shape makes attachment to existing construction elements simple

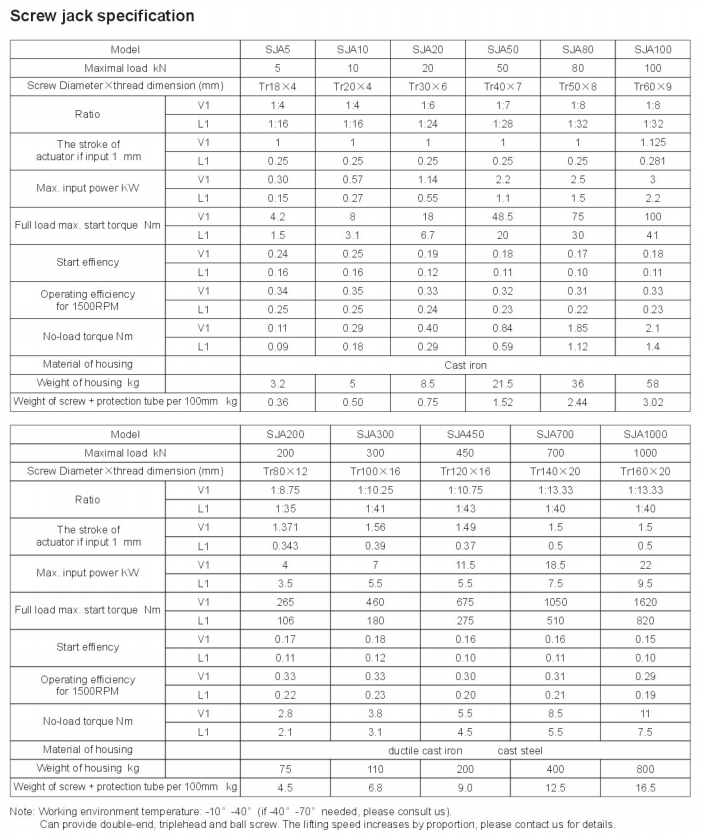

Technical Data Sheets &CAD

  • SJA Screw Jack

    PDF
