NMRV Series Worm Gear Reducers currently provides advanced solution to market requirements in terms of efficiency and flexibility. NMRV Series Worm Gear Reducers also available as compact integral helical/worm option, has been designed with a view to modularity: low number of basic models can be applied to a wide range of power ratings guaranteeing top performance and reduction ratios from 5 to 1000.

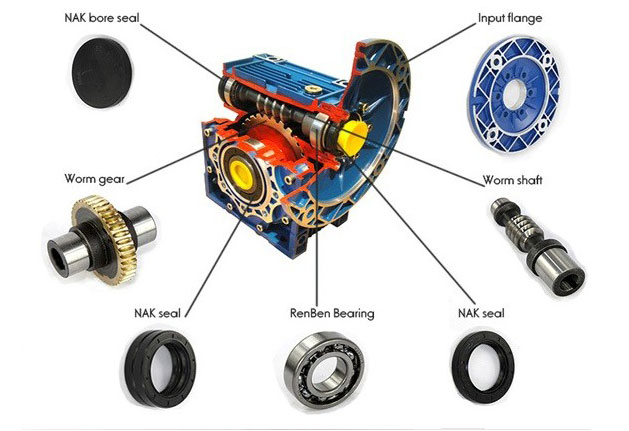

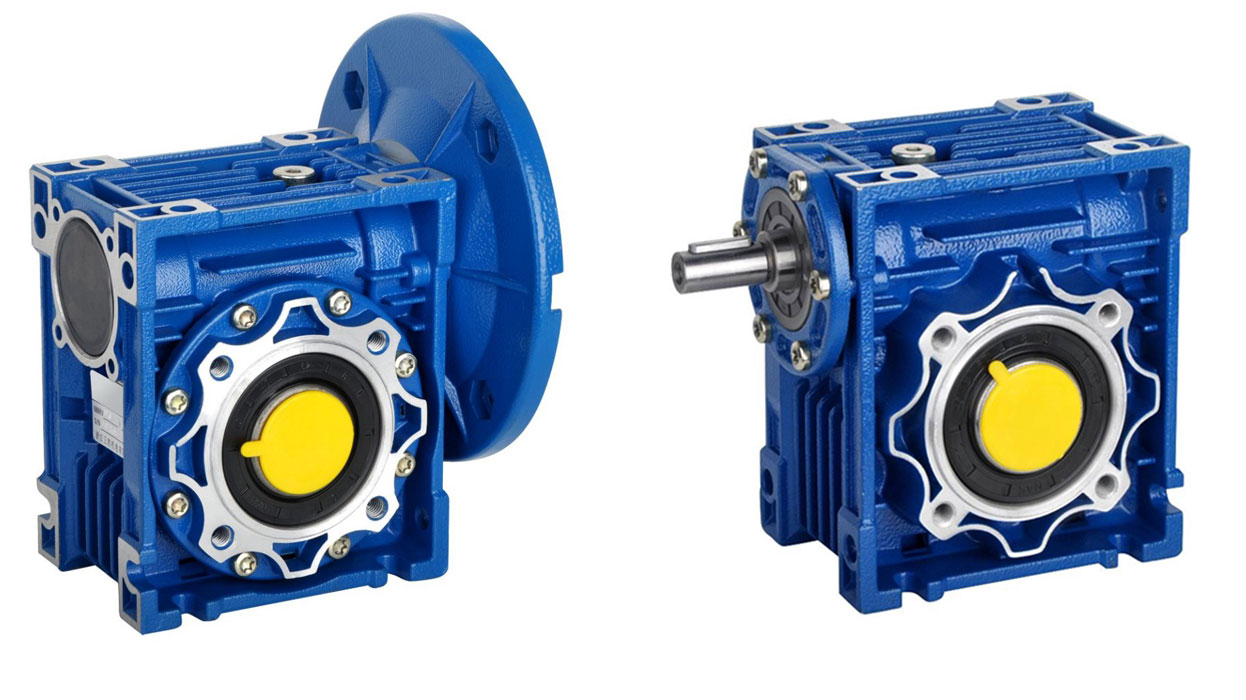

The NMRV reducer is a new type of reducer, or RV reducer."NMRV" refers to the aluminum shell reducer, which is used to refer to the aluminum shell reducer as the "NMRV reducer".The main components are oil seal, oil plug, worm gear box, ball bearing, the output shaft, worm gear, worm, mechanical shaft, motor connection plate (flange), the output shaft cover screw, hex socket steamed corn-bread, double round keys, gaskets, etc.NMRV series reducer - with single flange input, some flanged output or double shaft output.
NMRV reducer is widely used in food, leather, textile, glass, ceramics, medical, chemical industry, light industry and other mechanical equipment, reduction drive, is modernization drive system to realize single drive and on the production line, the best choice of the electromechanical integration.
NMRV reducer performance :
1. high-quality aluminum alloy casting, light weight, no rust.
2. The output torque.
3. Smooth transmission, low noise.
4. High thermal efficiency.
5. Beautiful and durable, small size.
6. Can be adapted to all-round installation
NMRV reducer use note:
1. before use should pay attention to check the reducer type structure, the center from the specifications, transmission ratio, input shaft connection, output shaft structure, input shaft output shaft pointing and rotation direction, etc. meet the requirements, worm input speed should not exceed 1500r / Min.
2. the boot should be gradually applied to the load, not full load start.
3. model 25-90 reducer only set the oil hole, the factory is reducer has been added ISOVG320 synthetic lubricants, the user no longer need to refuel, the machine running for about 500 hours, should replace the oil. After oil change cycle of 6000 hour.
