New Bevel Gearbox Productes Launches Sep 15 , 2022

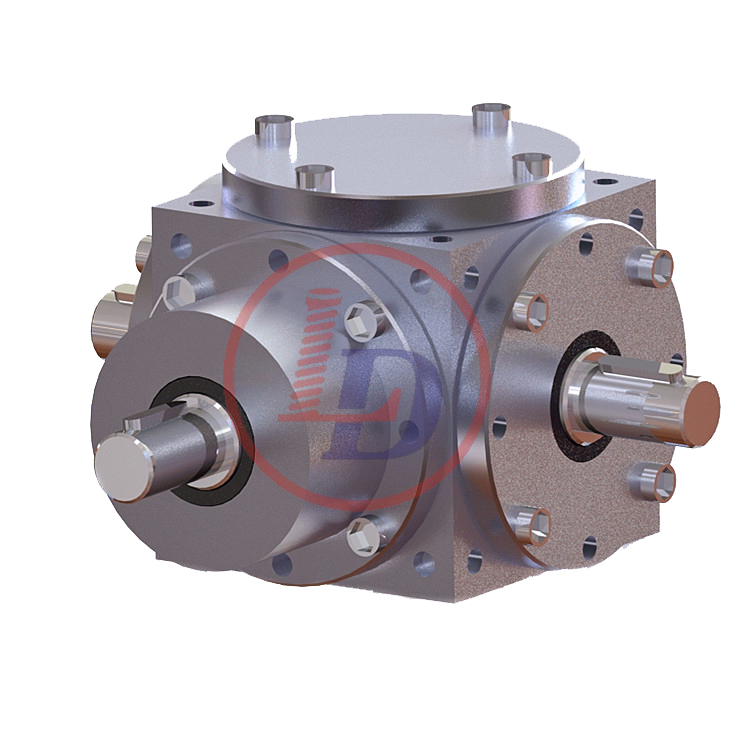

HD series


HD series spiral bevel gear unit product introductionspiral bevel gear unit, the following is trait:

1. the box is hexahedron, which can fit different direction mounting
2.long-lift using and big load, smooth transmission, low noise, transmission efficiency canget up to 94%-98%

3.spiral bevel gears are made of low carbon ally steel, through quenching and whetting,come to high precision rigidity tooth transmission

4.HD serie have seven species, big choosing range, mult-output shaft mode which meet various situations

5.enhancing and reducing speed

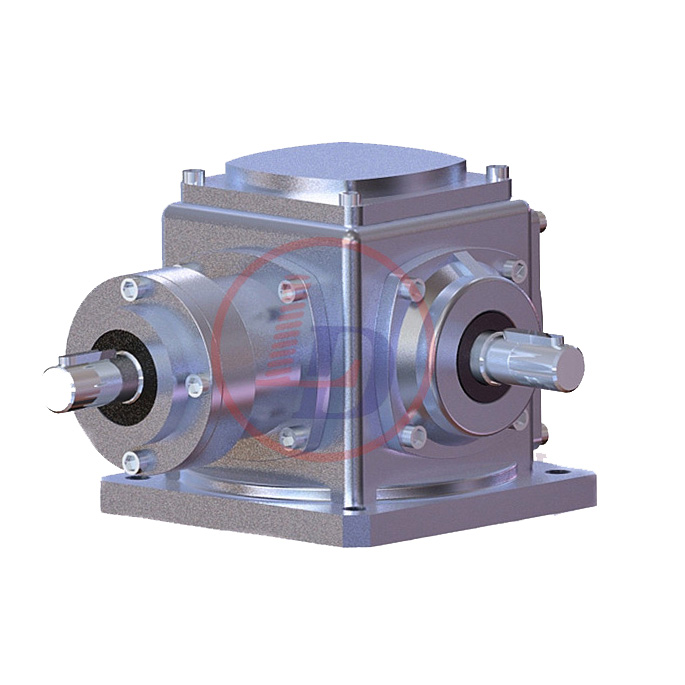

series overview:

T series spiral bevel gearbox with various types are standardized, all ratios of 1:1,1.5:1,2:1,2.5:1,3:1,4:1 and 5:1 are actual ones.Average efficiency is 98%.
There are one input shaft, two input shafts, unilateral output shaft and double side output shaft.
Spiral bevel gear can rotate in both directions and transmit smoothly, low noise, light vibration, high performance.
 lf ratio is not 1:1, if input speed on single-extendable shaft,out put speed will be reduced; if input speed on double-exfendable shaft.output speed will be reduced.

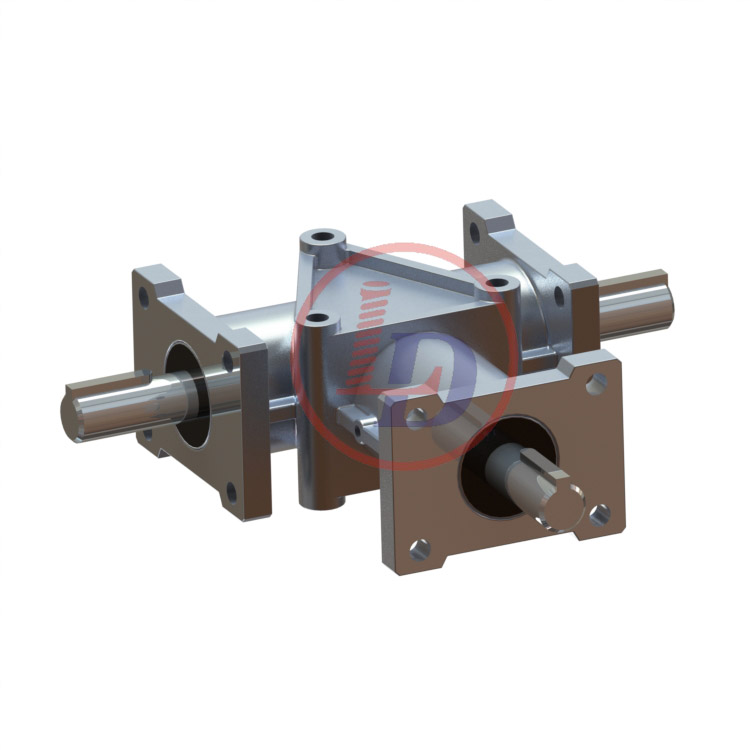

ARA series Bevel Gearbox

1.Small size,full installation, light weight,aluminum alloy shell.

2.The output of ARA series can select stainless Steel Materials. has two kinds of ratio respectively 1:1 and 2:1.
