Heavy Duty Worm Gear ACME Screw Jack

Heavy Duty Worm Gear ACME Screw Jacks combine an acme screw jack, motor and gear reducer into a single compact unit.
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Qingdao/Shanghai
  • Lead Time:

    20days after order confirmed
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Brief Description:

Heavy Load Worm Gear Screw Jacks combine an acme screw jack, motor and gear reducer into a single compact unit.  It can be customized according to detailed need.


Heavy Duty ACME Worm Gear Screw Jacks features :

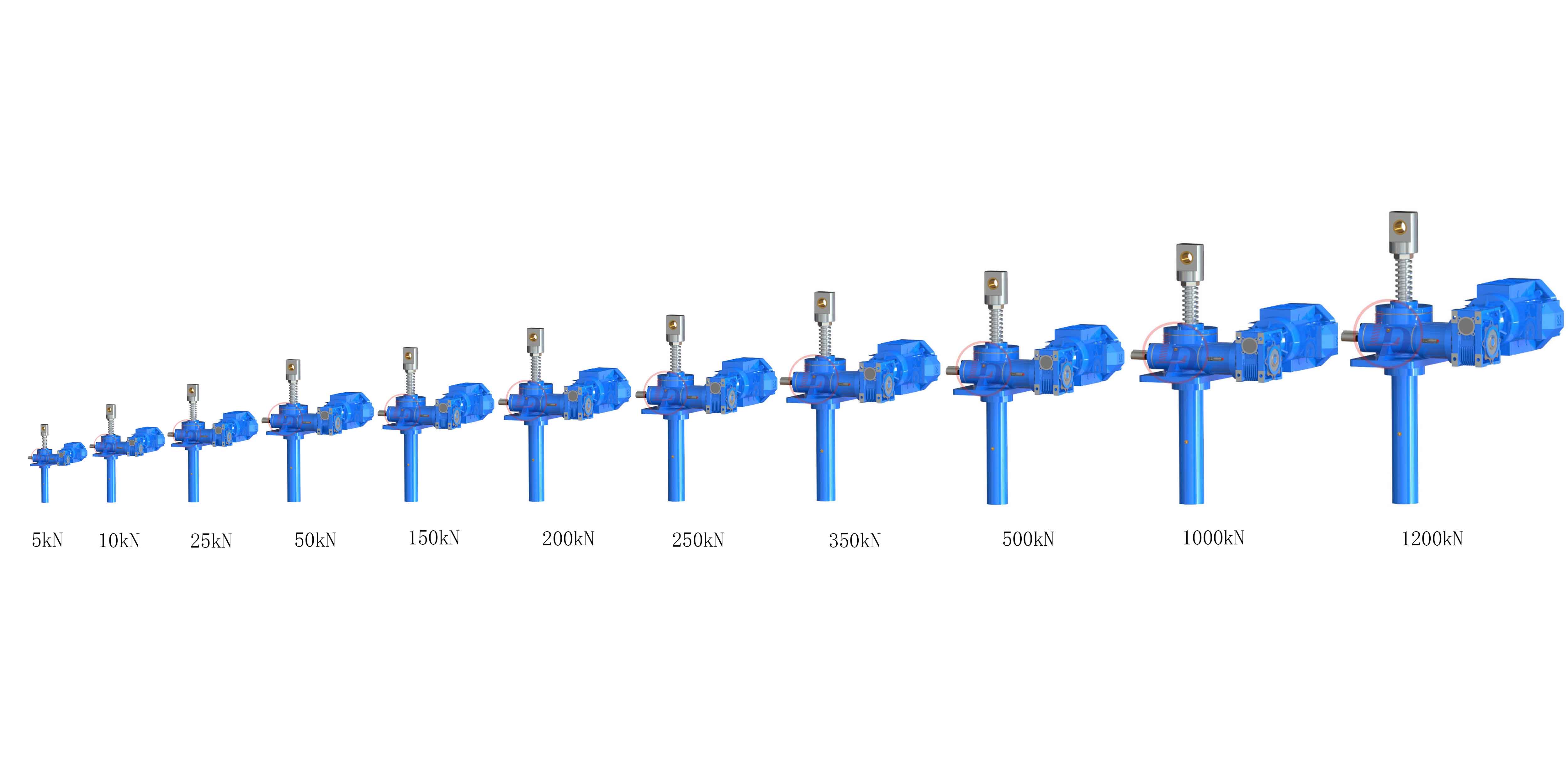

1.loading capacity from 2 Ton through 30 Ton .

2. available travel speeds up to 35.1 in/min.

3.with single lead screws are self locking; those with double lead screws may require a brake motor or external locking device to hold position.

4.ratios can be of 8:1 and 24:1

5.can be translating type or rotating type

6.Because the voltage in different countries can be different, pls inform our sales about the motor requirements.

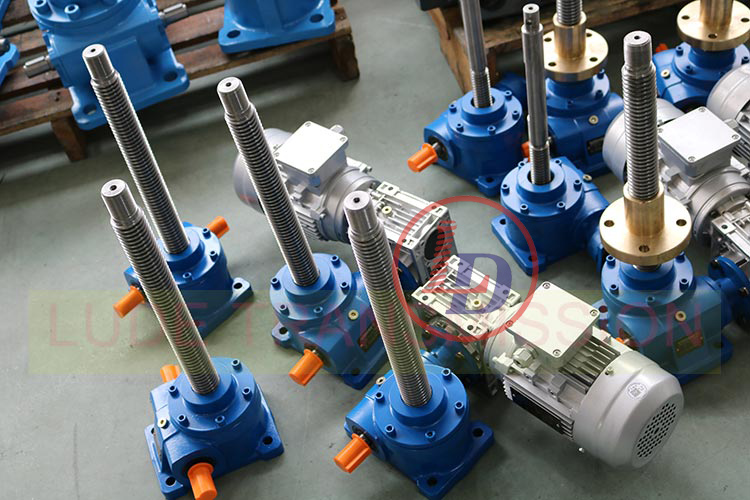

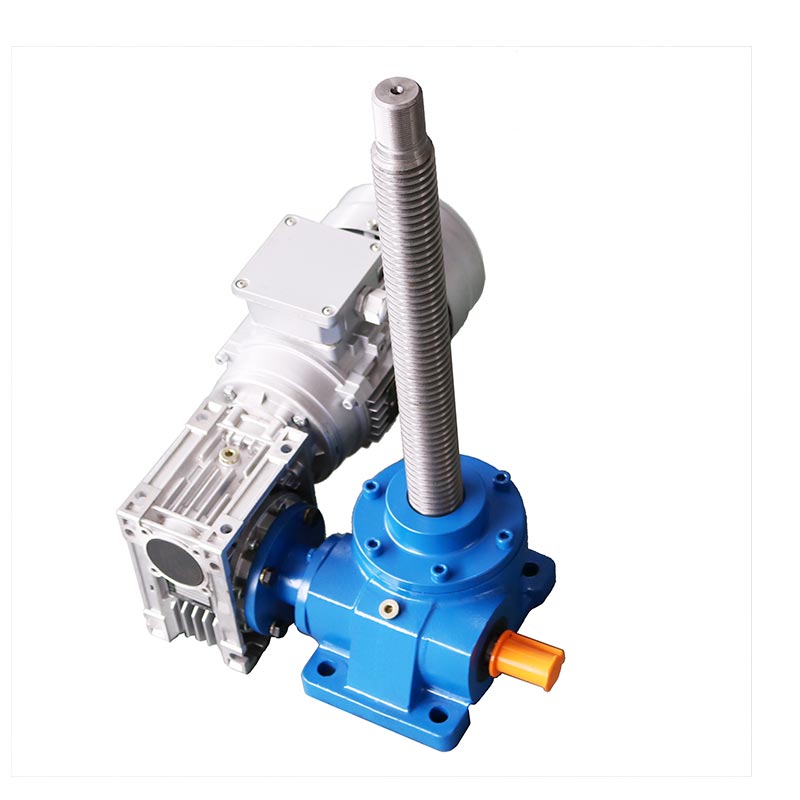

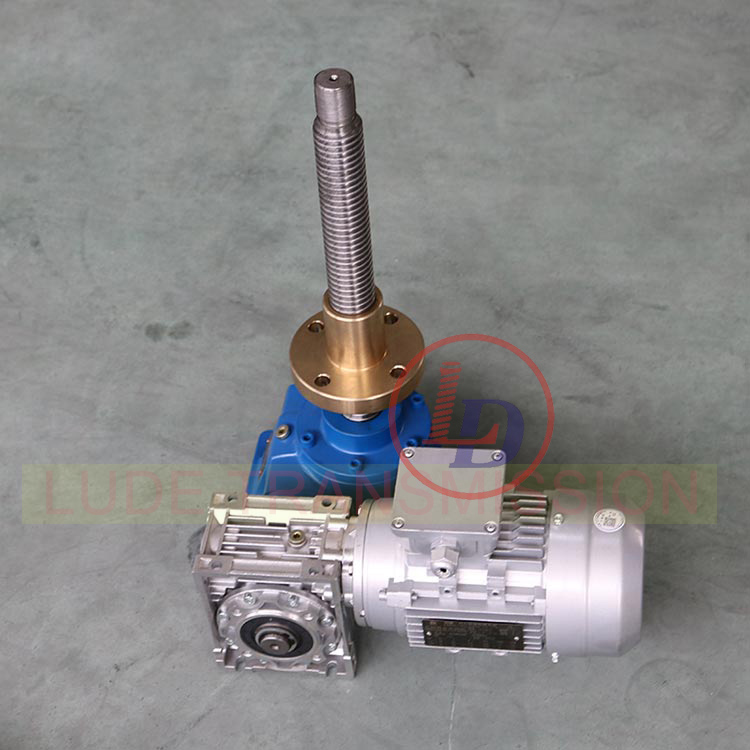

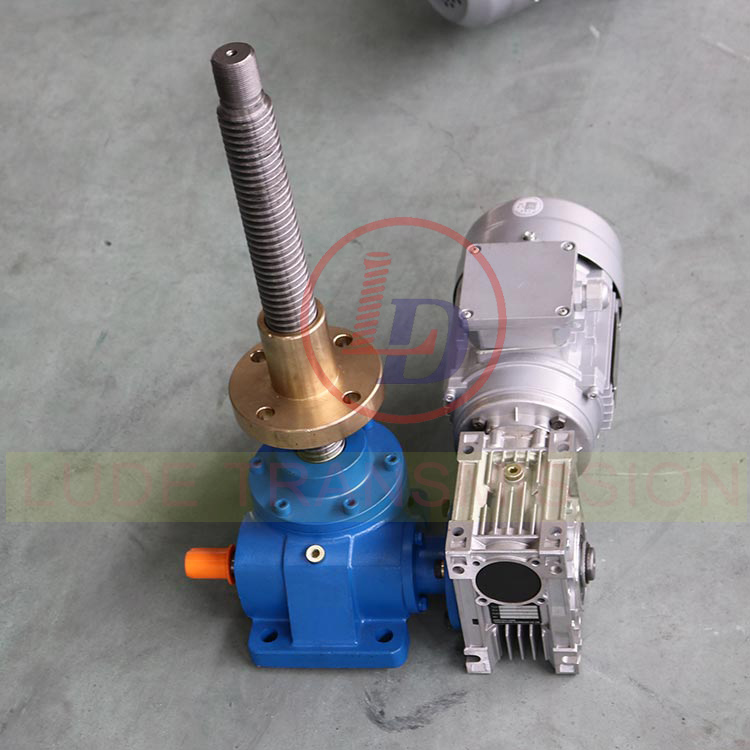

Heavy Duty ACME Worm Gear Screw Jacks Photos





Technical Data Sheets &CAD

  • JWM Screw Jack

    PDF
