Cubic translating mechanical screw jack

Mechanical worm screw jacks are devices that transform a rotary motion into a linear motion.
  • Brand:

    Lude
  • Item No.:

    SJA50
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai/Qingdao
  • Lead Time:

    15 days after order confirmed
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

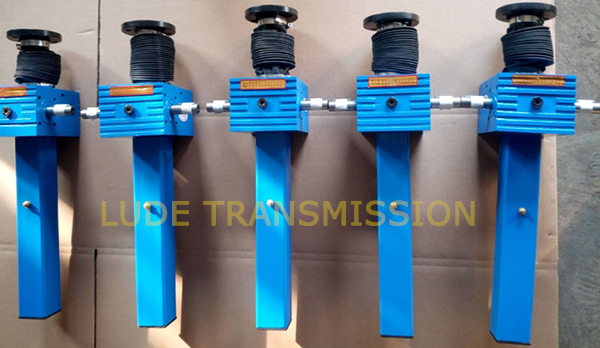

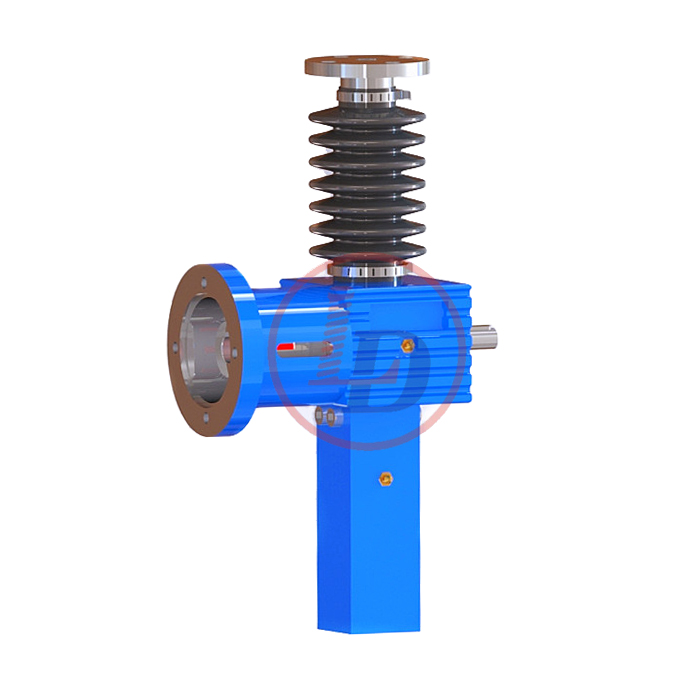

SJA50 Cubic Mechanical Screw Jack Pictures




SJA50 Cubic Mechanical Screw Jack Features

Max lifting load: 10kN

Dynamic load:11kN

Screw diameter 20mm,screw pitch 5mm

High speed ratio:4    Stroke per one put turn: 1.25mm    Max input power:0.57kW

Low speed ratio:16     Stroke per one put turn: 0.31mm    Max input power:0.27kW

Different top end types available

Stroke: 10mm to 6000mm, can be customized as per detailed needs


SJA50 Cubic Mechanical Screw Jack Specification



SJA50 Cubic Mechanical Screw Jack Dimensional Drawing








mini screw jack

small screw actuator

Technical Data Sheets &CAD

  • SJA Screw Jack

    PDF
