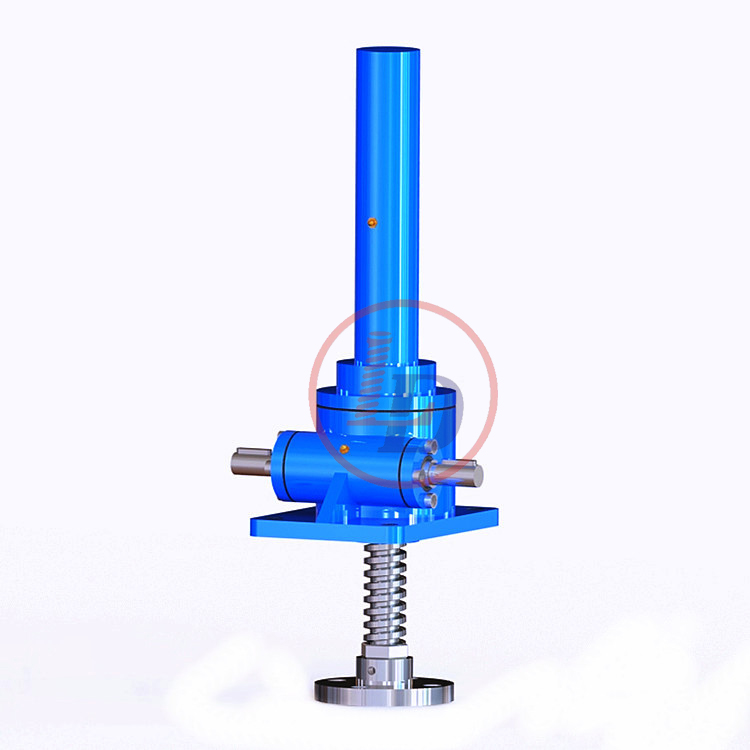

Trapezoidal Machine Screw Jacks 5Ton

Worm Gear Machine Screws Jacks are common worm gear screw jacks,can be upright or inverted,with anti-rotation or self-locking functions.
  • Brand:

    Lude
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai
  • Lead Time:

    within 15 days after payment received
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Basic parameters for machine screw jack 5ton

* Screw Pitch: 8mm
* Maximal load: 5ton/49kN
* Speed Ratio: 1:6
*Stroke:100~1000mm
*Raise per revolution (mm) :1.33
*Starting torque at max load (Nm):48.7.
*Permissible output maximal power(kw):2.0

*Different screw top ends available



Machine screw jack features

Trapezoidal screw jack is suitable for low speed and low frequency.

Main components:Precision trapezoid screw pair and high precision worm-gear pair.

1.Economical:

Compact design,easy operation,convenient maintenance.

2.Low speed and low frequency

Be suitable for heavy load,low speed,low service frequency.

3.Self-lock

Trapezoidal screw has self-lock function,it can hold up load without braking device when screw stops traveling.




Technical Data Sheets &CAD

  • JWM Screw Jack

    PDF
